SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

External Testing Certification: ce

Hign-concerned Chemical: None

Item Diameter: 1.5

Item Height: 2

Item Length: 1.5

Item Type: Battery Switch

Item Weight: 0.1

Item Width: 1.5

Material: ABS

Model Name: 50A 100A 200A

Origin: Mainland China

Special Features: Battery Isolator Selector Switch

Year: ALL

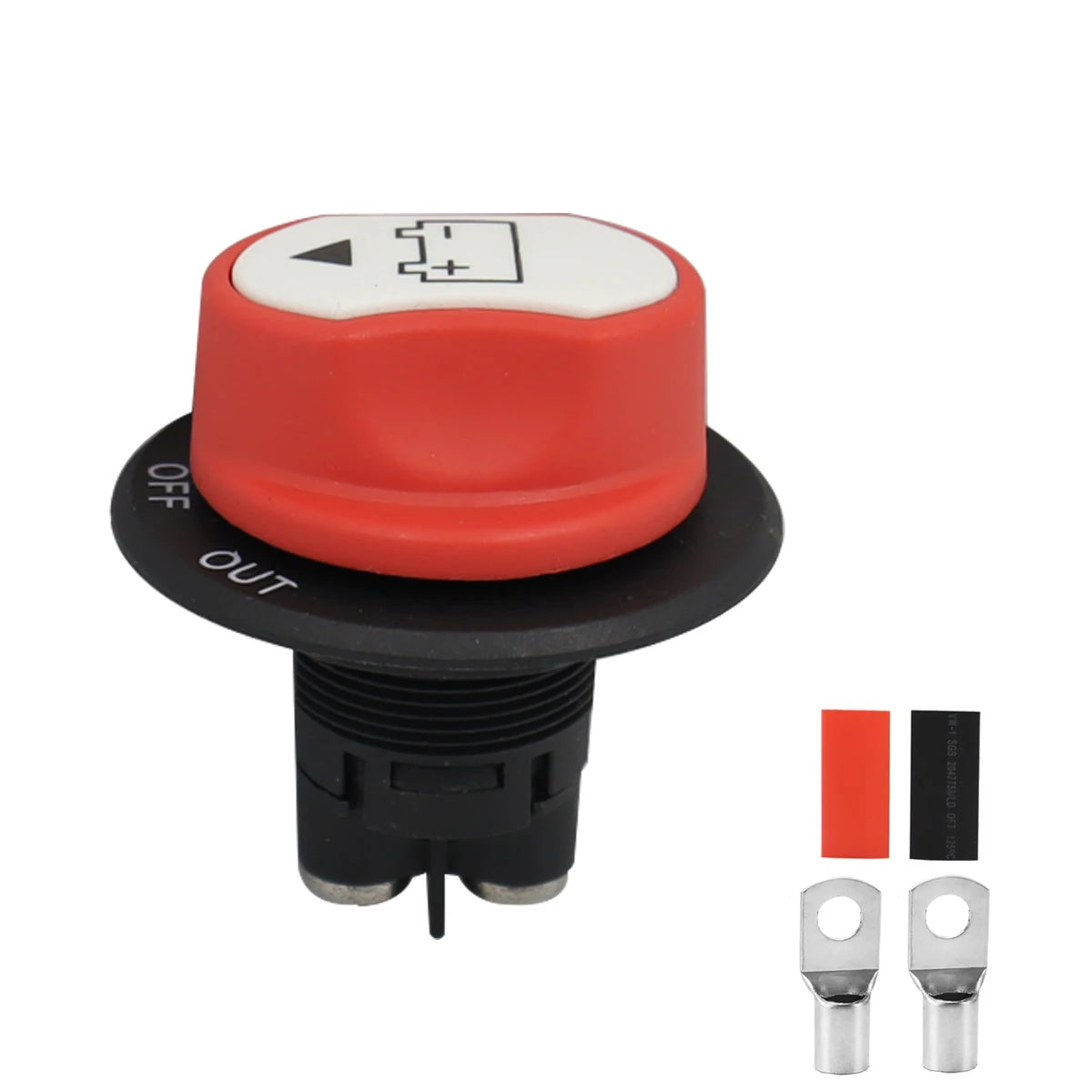

Product Name: Battery Isolator

Color: Black+Red

Material: ABS plastic + copper plated silver inner core

Working voltage : DC 32V

Rated current :50A/100A/200A/300A

Easy to install, the knob can be detached.

Suitable for car, motorcycle, truck, boat, camper, and etc.

Small size, sturdy and durable.

Product Description:

1. The switch can be operated normally by battery or as an auxiliary battery switch.

2. Small size, beautiful appearance, strong and durable.

3. Easy to install, there are a variety of installation methods to choose from.

4. Trucks, tractors and professional racing cars. Today, switches are used in many conventional motorhomes. At present, there are many such modified racing combination switches used in coastal cities in China, and the installation is simple.

Model : 50A
Mounting hole diameter : 22mm
Diameter of terminal post : 4mm
Continuous rating : 50AMPS 50VDC MAX
Rated starting current : 300A for 5 seconds
Intermittent rated current : 75A
Contact resistance : 50M MAX

Model : 100A
Mounting hole diameter : 29mm
Diameter of terminal post : 6mm
Continuous rating : 100AMPS 32VDC MAX
Rated starting current : 500A for 5 seconds
Intermittent rated current : 150A
Contact resistance : 50M MAX

Model : 200A
Mounting hole diameter : 38mm
Diameter of terminal post : 8mm
Continuous rating : 200AMPS 32VDC MAX
Rated starting current : 1000A for 5 seconds
Intermittent rated current : 300A
Contact resistance : 50M MAX

Mounting hole diameter : 52mm

Diameter of terminal post : 10mm

Continuous rating : 300AMPS 32VDC MAX

Rated starting current : 2000A for 5 seconds

Intermittent rated current : 450A

Contact resistance : 50M MAX
