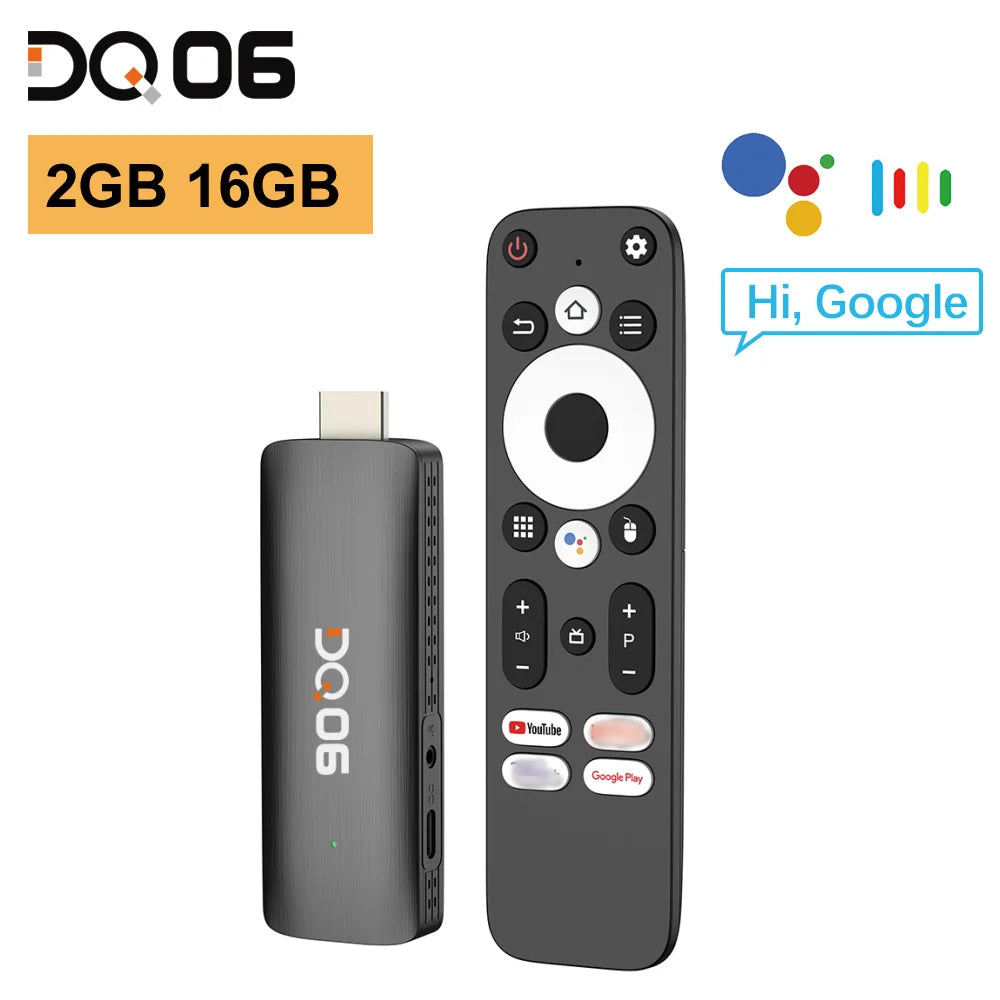

DQ06 ATV Mini TV Stick Android12 Allwinner H618 Quad Core Cortex A53 Support 8K Video 4K@60fps Wifi6 BT5.0 Build in BT Voice Rem
DQ06 ATV Mini TV Stick Android12 Allwinner H618 Quad Core Cortex A53 Support 8K Video 4K@60fps Wifi6 BT5.0 Build in BT Voice Rem
SPECIFICATIONS
Antenna Type: Internal
Brand Name: VONTAR
Certification: CE
Connectors: HDMI-compatible
Decode Ability: 1080P (Full-HD)
Function: IR Control
Hard Disk Capacity: < 100GB
Hign-concerned Chemical: None
Item Type: TV stick
Model Number: DQ06
Operation System: Android
Origin: Mainland China
Picture Format: BMP,JPEG
Recording: No
Remote Control: Included
Resolution: 1080p
Transmission distance: <50m
Type: High Definition
Wi-Fi Frequency: 5GHz
Wi-Fi Range: <10m
DQ06 ATV Mini TV Stick Android12 Allwinner H618 Quad Core Cortex A53 Support 8K Video 4K@60fps Wifi6 BT5.0 Build in BTVoice Remote Smart TV Box 2G16G 4G32G
1, CPU: Allwinner H618 Quad Core ARM Cortex A53;
2, GPU: Mali G31 MP2;
3, OS: Android12;
4, Storage: DDR3 2GB/4GB, eMMC 16/32GB ;
5, Support: 8K Video, 4K@60fps, HDR10+, H.265;
6, Support: 2.4G&5.8G Wifi6, BT5.0+;
7, Support: Firmware Wireless Upgrade(OTA);
8, Build in BT Voice Remote Control.
Basic parameters | ||
CPU |
Chipset |
Allwinner H618 |
Architecture |
Quad Core ARM Cortex A53 |
|
GPU |
Chipset |
Mali G31 |
Storage |
RAM |
2GB/4GB |
ROM |
16GB/32GB |
|
External Storage |
TFStorage |
Supported |
Software | ||
Operating system |
OS Version |
Android 12 |
Language |
Multi-Language |
|
Multimedia |
Video |
Video Decoder: |
H.265 Main10@L5.1 decoder up to 4K@60fps or 6K@30fps | ||
VP9 Profile 2 decoder up to 4K@60fps | ||
AVS2 JiZhun 10bit decoder up to 4K@60fps | ||
H.264 BP/MP/HP@L4.2 decoder up to 4K30fps | ||
|
Multi-format 1080p@60fps video playback formats, including H.264 BP/MP/HP, H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL, MPEG-4 SP/ASP@L5, AVS+/AVS JiZhun, WMV9/VC1, etc | ||
Video Encoder: | ||
H.264 BP/MP/ HP encoder up to 4K@25fps or 1080p @ 60fps JPEG snapshot performance of 1080p @ 60fps | ||
Media Format |
RM,RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV |
|
Music Format |
MP3, WMA, OGG, AAC, M4A, FLAC, APE, AMR, RA, WAV |
|
Photo Format |
HD JPEG/BMP/GIF/PNG |
|
HDR |
HDR10 and HLG ,Support the transformation between SDR and HDR |
|
HDD file system |
FAT16/FAT32/NTFS |
|
Support Subtitle |
SRT/SMI/SUB/SSA/IDX+USB |
|
HDvideo output |
8K Video, 4K (3840x2160 pixel ) |
|
|
OSD type of Languages |
English/French/German/Spanish/Italian/ etc multilateral languages |
|
Network Service | ||
Wi-Fi |
Type |
IEEE802. a/b/g/n/ac /ax |
Frequency |
2.4GHz&5.8GHzWifi6 |
|
Antenna Type |
Inside antennas |
|
BT |
BT |
BT5.0+ |
Interface | ||
Charge |
DC |
1* Type-C 5V/2A |
Video output |
HD |
1* HD2.0a up to 4K 2K Outputwith HDR,CEC |
Card Reader |
External memory |
1* TF Cardup to 128GB |
IRport |
IRHost |
1* ɸ2.5mm infrared extension line |
- 1 x DQ06 TV Stick
- 1 x BT Voice Remote
- 1 x HD Cable
- 1 x USB-Typc C Cable
- 1 x IR Extend Cable
- 1 x User Manual
