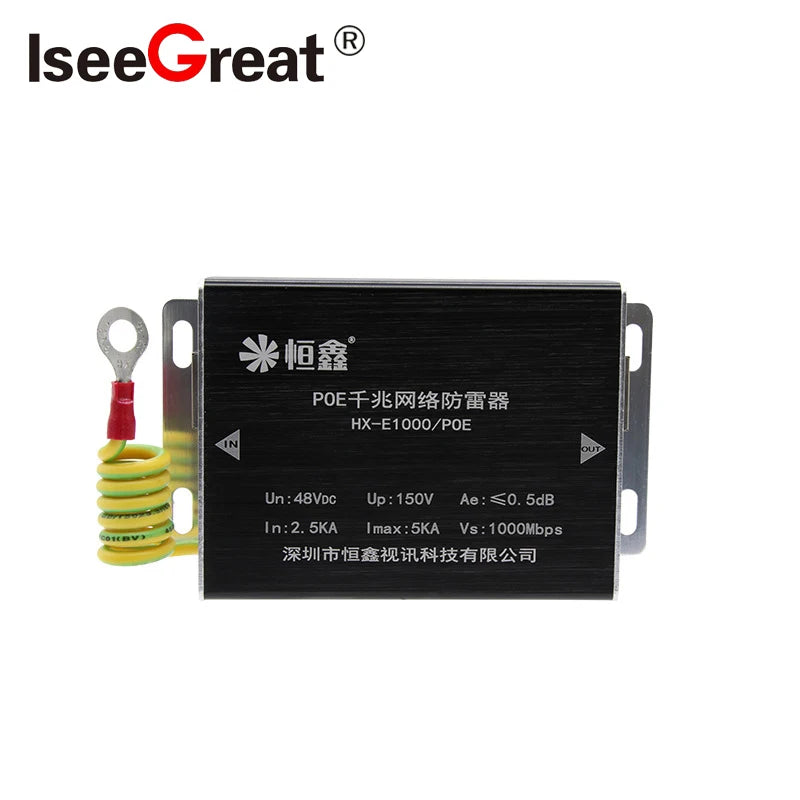

Single-channel Gigabit POE Network Lightning Protection Device 1000Mbps SPD Thunder Preventer For CCTV IP Cameras
Single-channel Gigabit POE Network Lightning Protection Device 1000Mbps SPD Thunder Preventer For CCTV IP Cameras
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE,RoHS
Choice: yes
Connector form: RJ45
Insertion Loss: ≤0.5dB
Item Type: Communication Converter
Limit Voltage: ≤60V
Maximum discharge current: 5KA
Maximum operating voltage: 57V
Model Number: HX-E1000/POE
Operating Temperature: -30℃-70 ℃
Origin: Mainland China
Product Weight: 0.16KG
Protection Line: 1/2/3/6 4/5/7/8
Rated working voltage: 12-18V
Response Time: ≤0.1ns
Shell material: Aluminum Material
Size: 10.6*6.6*2.8cm
Standard discharge current: 2.5KA
Transmission Rate: 1000Mbps
semi_Choice: yes
Gigabit POE network surge protector surveillance camera surge protector 1000M 8-core network cable surge protector
1.multi-stage protection,large circulation capacity;
2.core components are strictly screened,and international famous products are selected,with superior performance;
3.Built-in fast semiconductor protection device,quick response;
4.low capacitance design ,superior transmission performance;
5.Low insertion loss and longer distance;
6.the limiting voltage is extremely low;
7.Advanced production technology,beautiful appearance;
8.easy installation.
Lightning Protection Induction
Protect Equipment Safety
Prevent induced lightning surges,
protect equipment and reduce lightning strikes.
Nanosecond Response Speed
When the protected equipment is overloaded with
voltage and current, the discharge components will
automatically conduct grounding in nanoseconds
and leak to the ground.
POE wide voltage design
Support voltage DC24-57V
Support non-standard POE switches
video recorders
Network 8 core lightning protection
Multi-Stage Protection
Large Circulation Capacity
The limiting Voltage Is Extremely Low
Low insertion loss and longer distance
