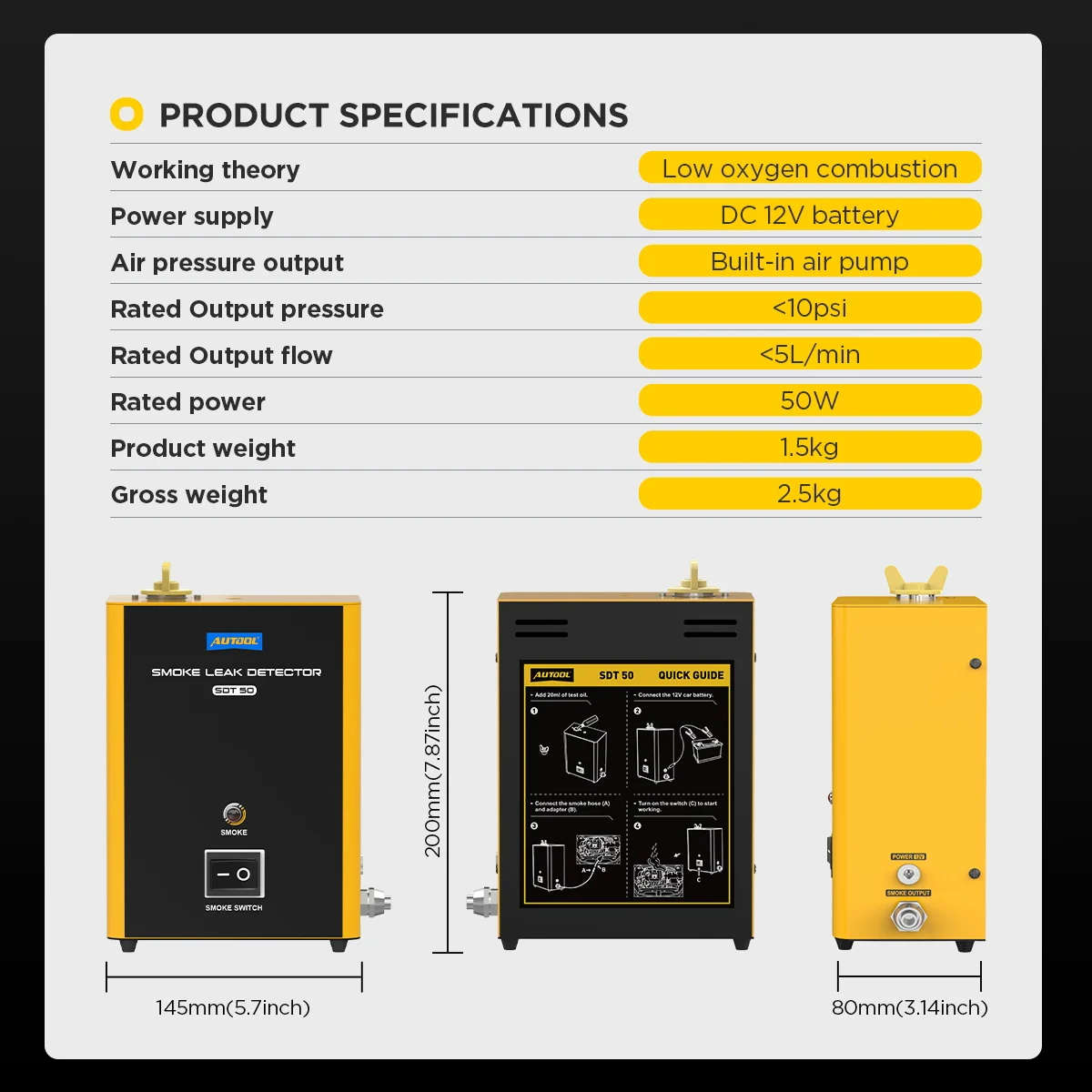

SPECIFICATIONS

Air pressure output: Built-in air pump

Brand Name: AUTOOL

Function: EVAP Leakage detector

Gross weight: 2.5kg

Hign-concerned Chemical: None

Item Type: Car Smoke Leakage Detector

Key words 1: Car Leak Detector

Key words 2: Car Smoke Machine

Key words 3: smoke machine leak detector

Key words 4: pipeline detector

Notice: there has no any test oil in box

Origin: Mainland China

Power supply: DC 12V battery

Product Model: SDT50

Product size: 23*21*25cm

Product weight: 1.5kg

Rated Output flow: <5L/min

Rated Output pressure: <10psi

Rated power: 50W

Test fluid: baby oil, olive oil or mineral oil

Usage for: Car Oil Pipe Diagnostic Tool,Vehicle/motorcycle fuel pipe leakage detector

Working theory: Low oxygen combustion

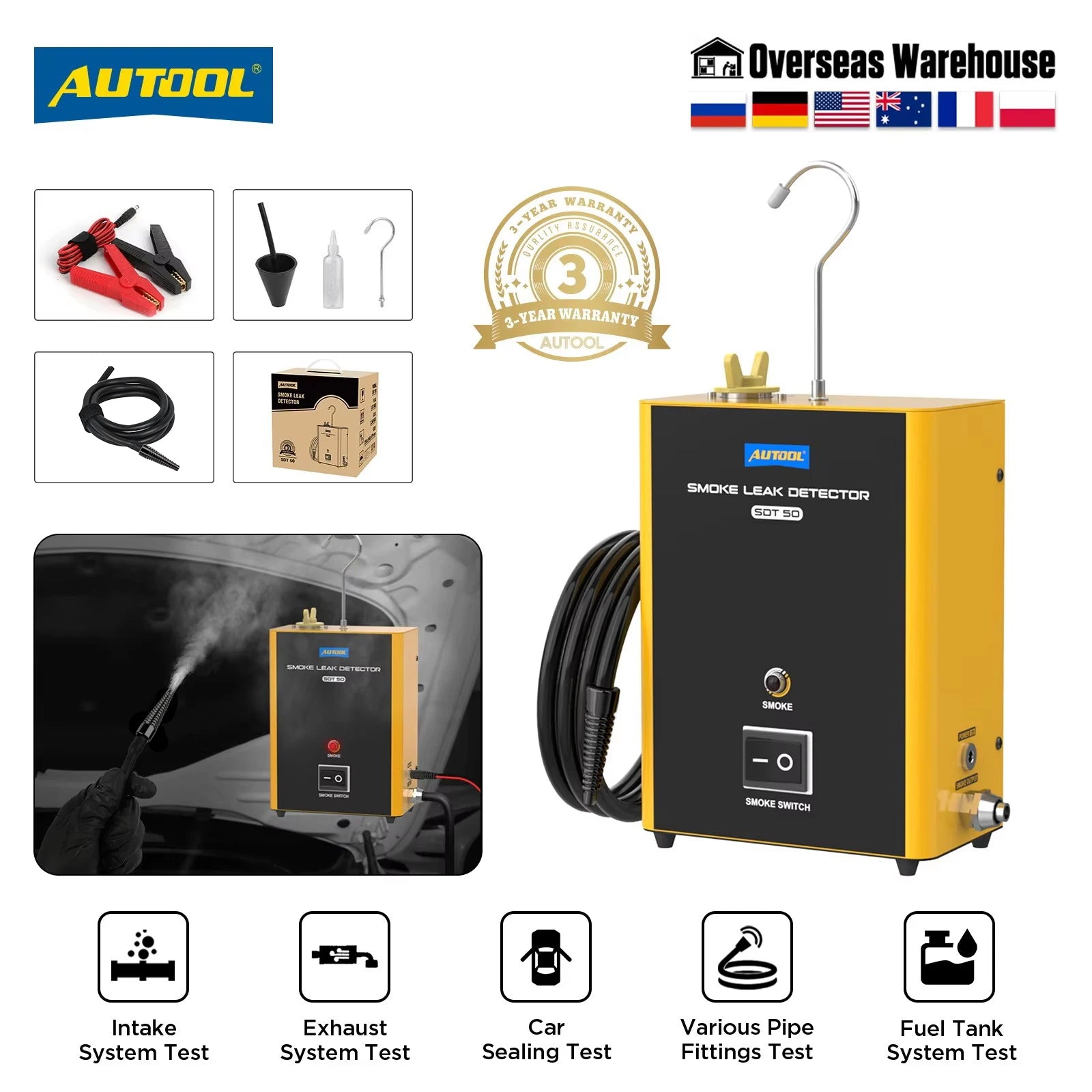

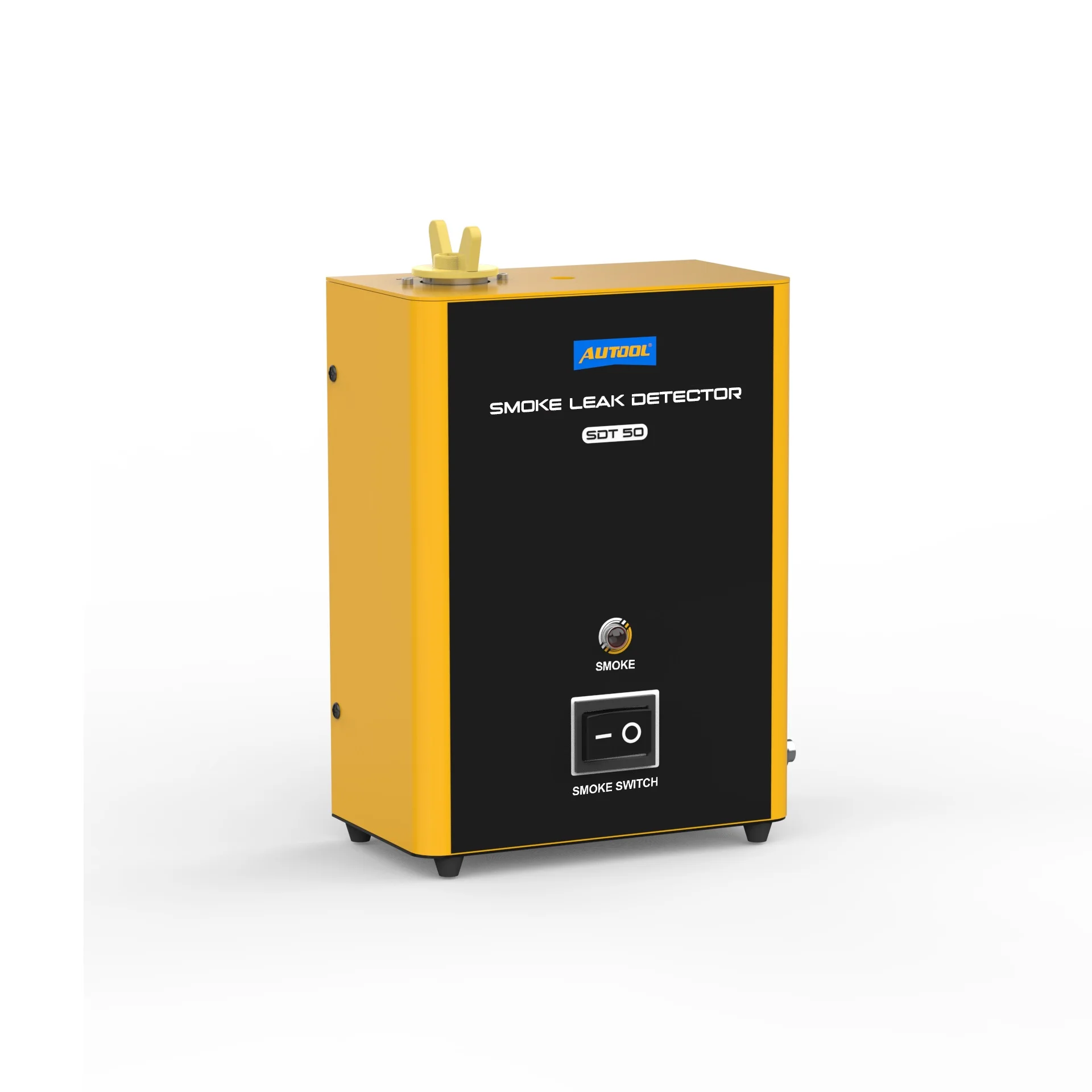

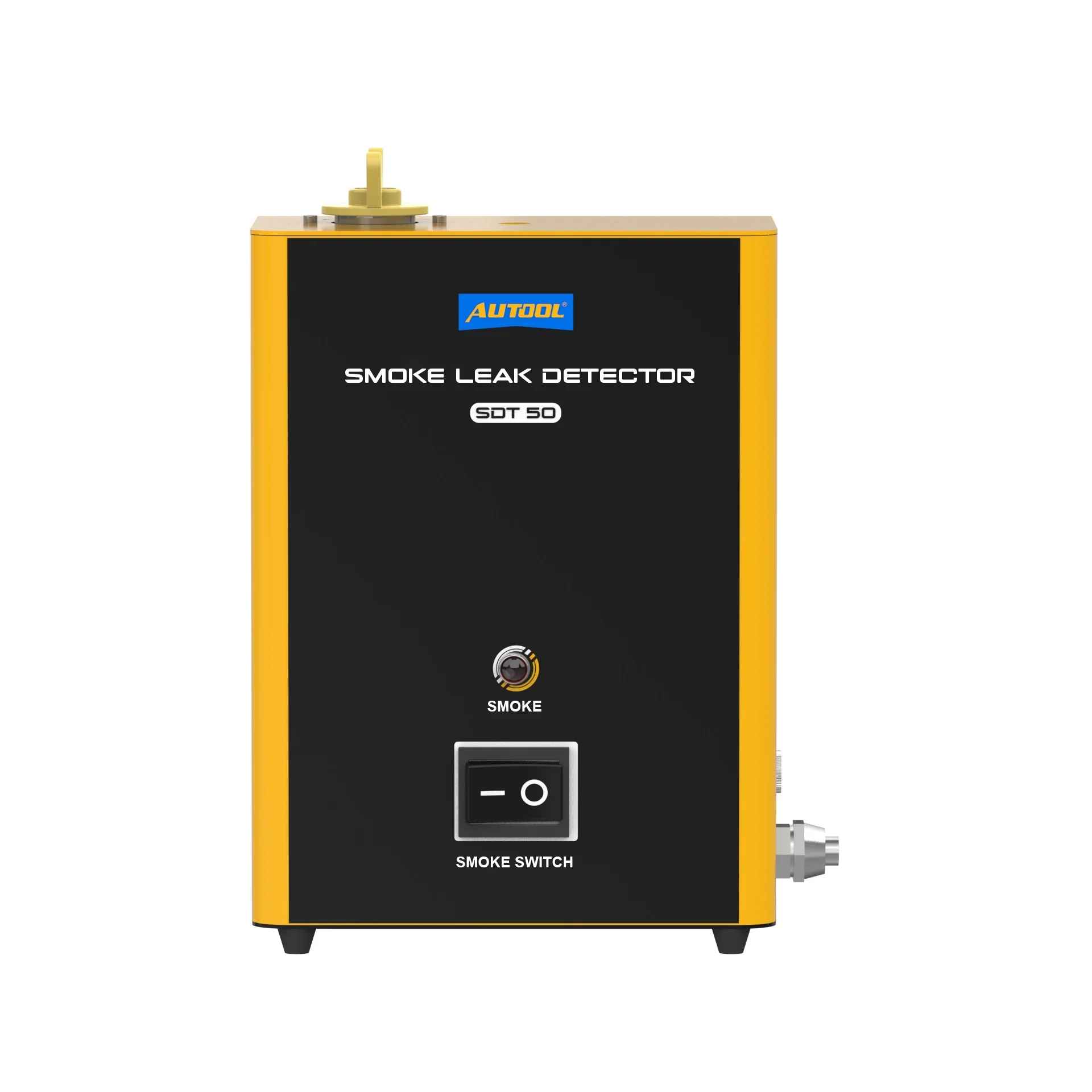

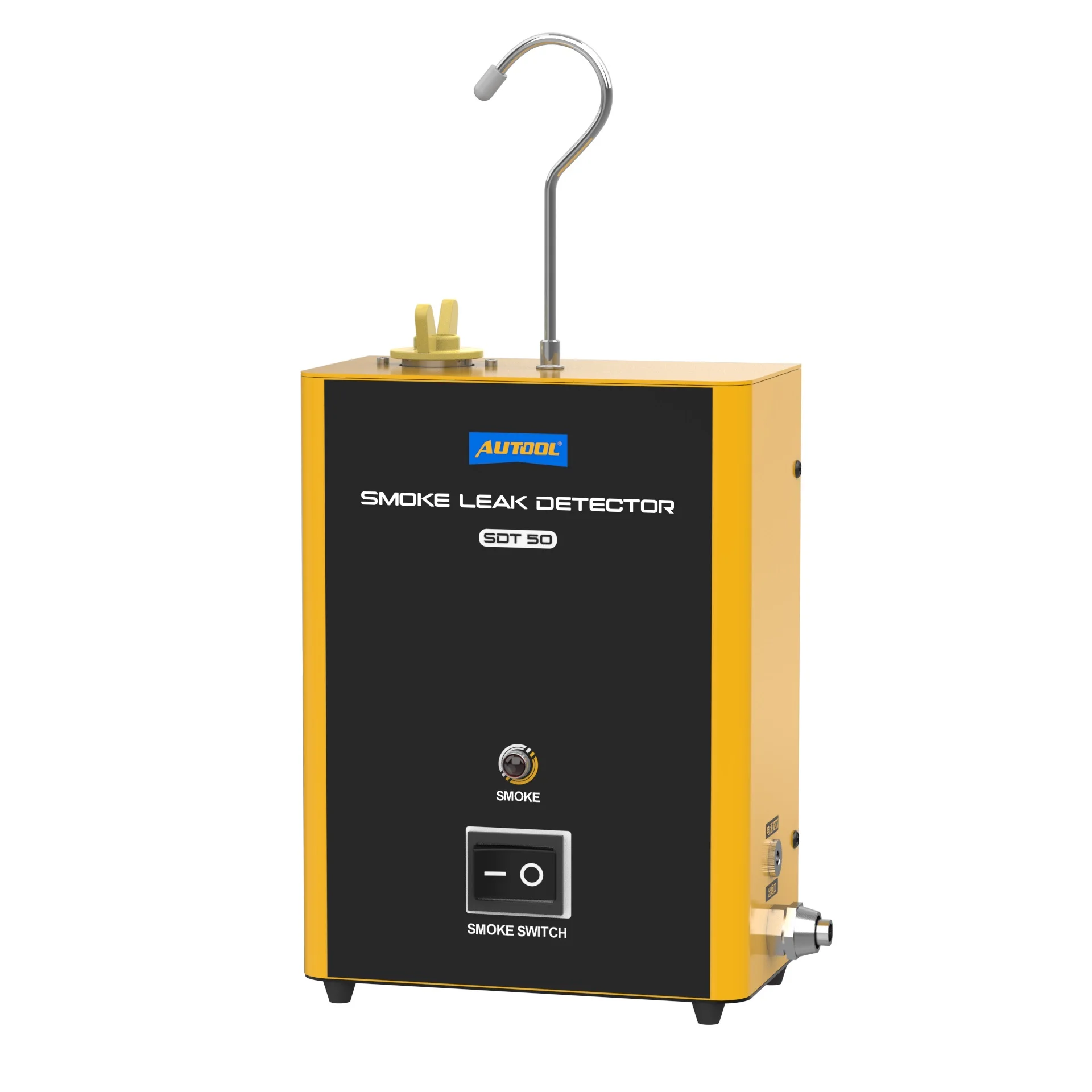

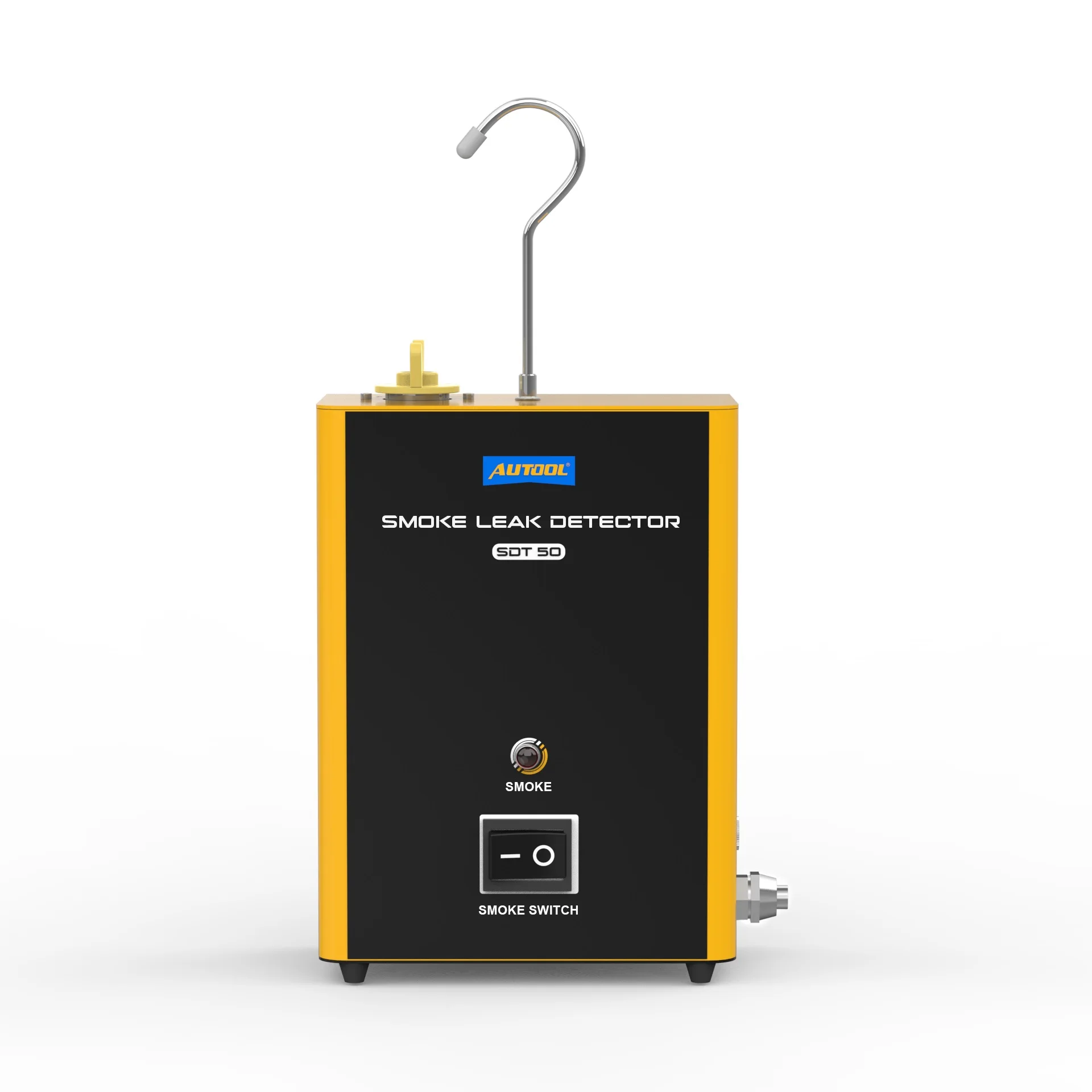

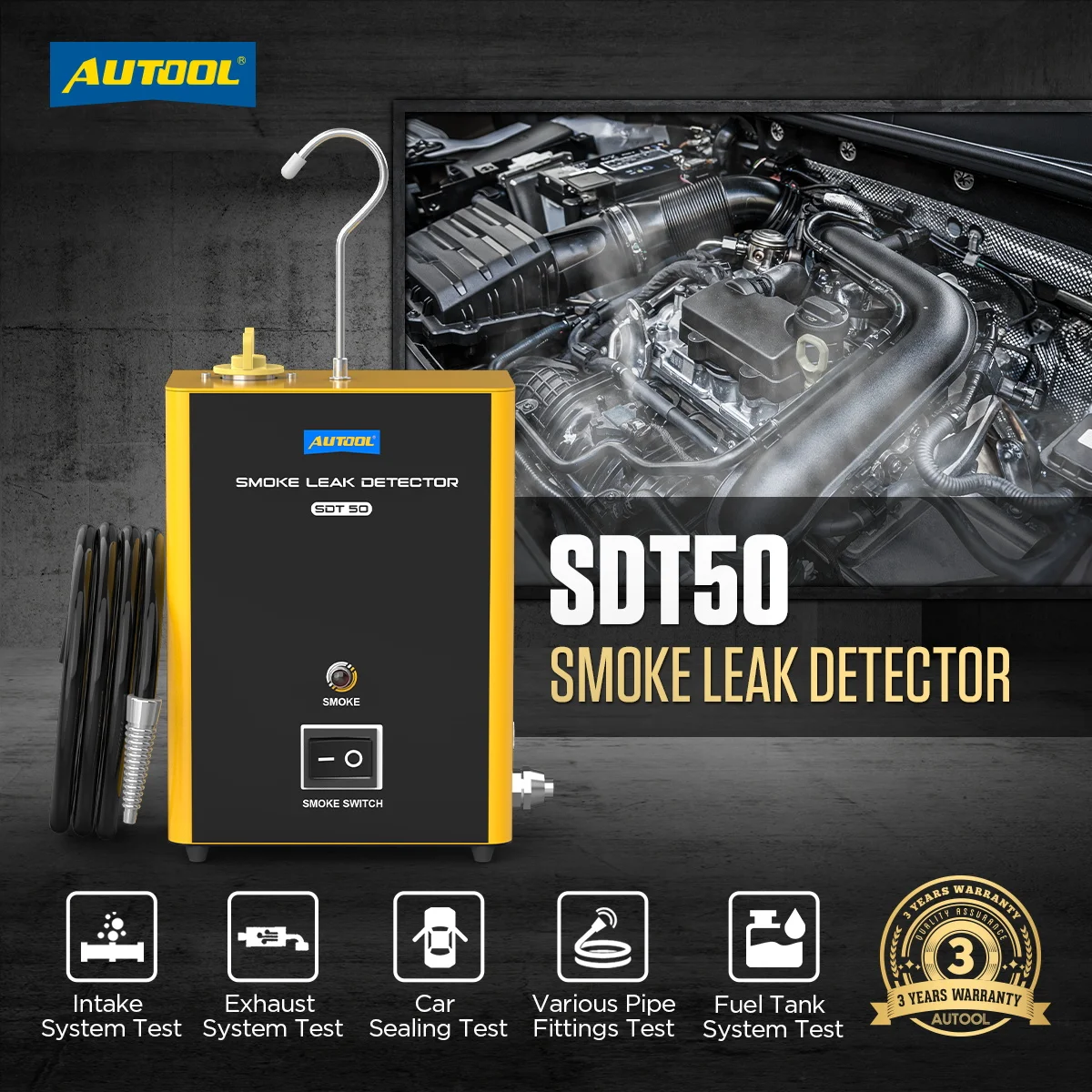

AUTOOL SDT50 Car Smoke Leak Detector is a professional auto pipe leak detect tool.It will help us position cars motorcycles leakage on pipe system quickly and exactly ,such as : Vacuum Leaks Test，Intake System Test，Exhaust Systems Test，Fuel Tank System Test，Turbo Test，Cooling System，EGR System，Crankcase System.

1. Fill 10ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.

2. Disconnect the pipe that needs to be connected with detector.

3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.

4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

AUTOOL SDT50 Car Smoke Leak Detector Features :

1. [Wide range of applications] For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.

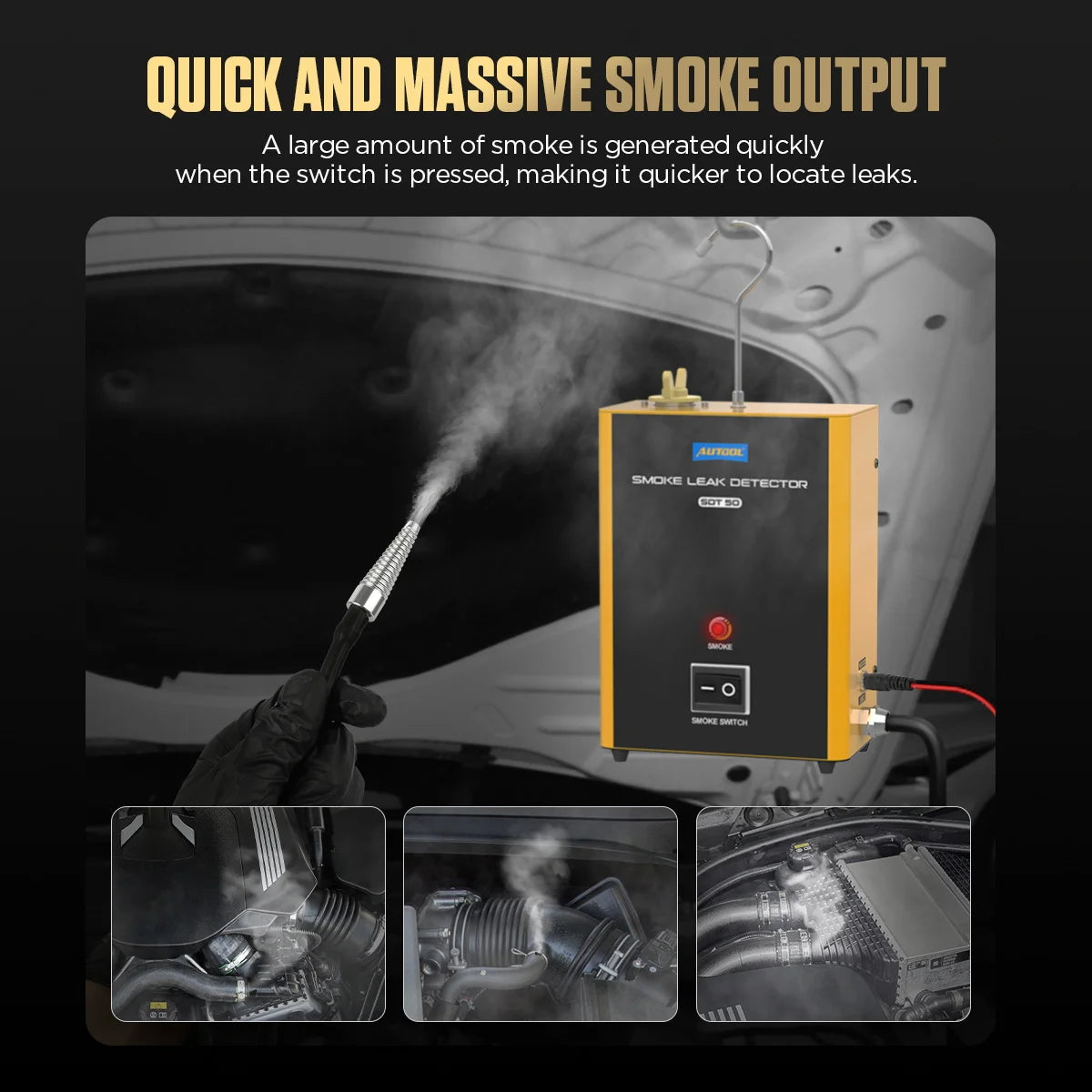

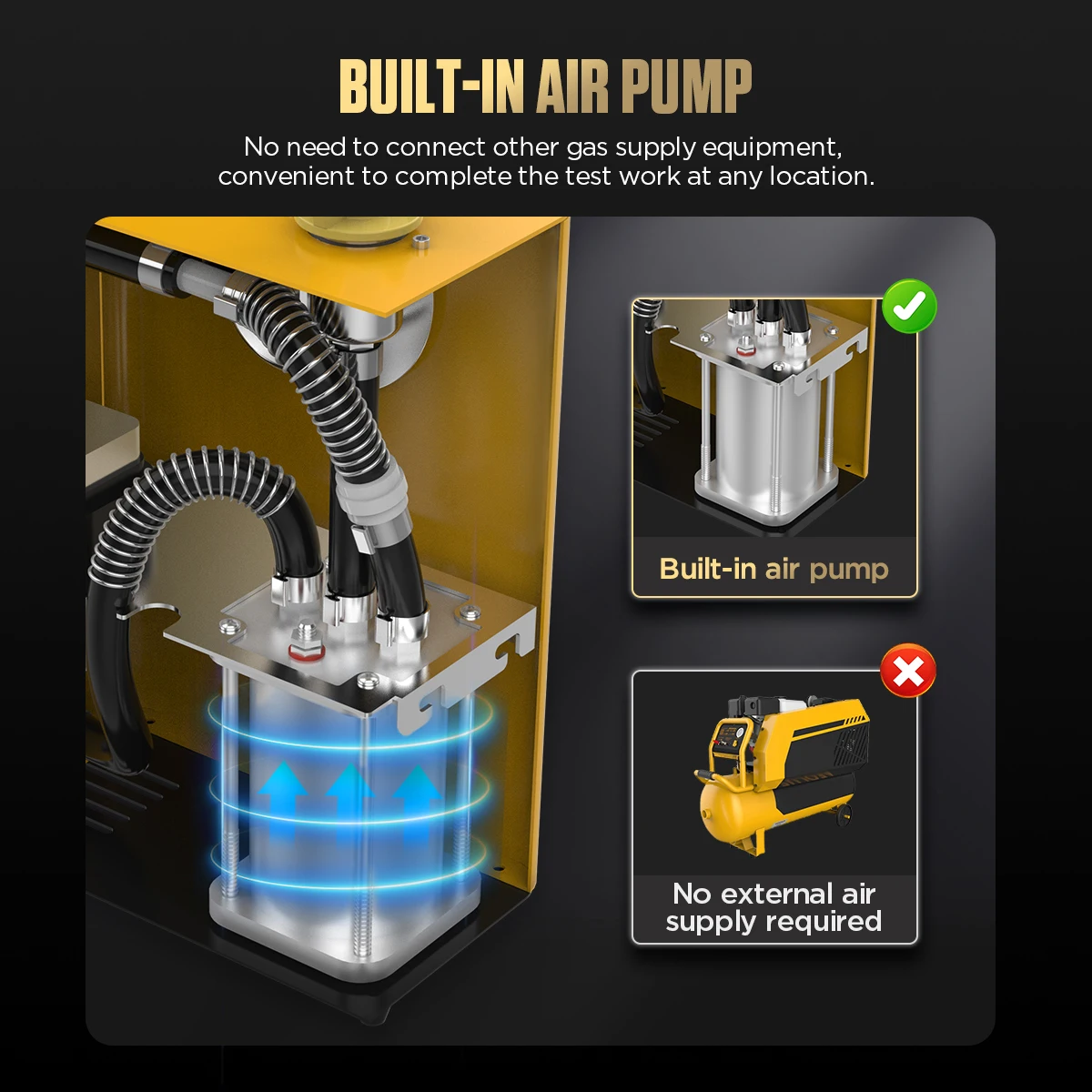

2. [BUILT-IN AIR PUMP] The AUTO SDT50 No need to connect other gas supply equipment, convenient to complete the test work at anylocation. convenient to complete the test work at anylocation.Connect the detector with DC 12V battery,It can be outputs lots of Smoke within 30 seconds after turning on.Equipped with AUTOOL's latest smoke generator and 1/2 PSI high pressure unit, which ensures continuous output of a large amount of smoke. The dense smoke output detects even the smallest leaks and helps you diagnose faults quickly and accurately. Significantly improves the efficiency of diagnosis.

3. [Advanced technology] It works on the EVAP system (we also have another version that specifically designed for the EVAP system)

4. [Overheat&Anti frost protection] The detector has a smart protector If it exceeds the working limit for e.g. over 75 ℃ It will power off automatically.

5. [3 years warranty] For damage caused by non-human factors, we promise to resend parts for free within 3 years.

9. If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
