PROZOR Phono Preamplifier Converter Audiophile M/M Phono Preamp Preamplifier with Level Control 2 RCA Input & Output for AK-750S
PROZOR Phono Preamplifier Converter Audiophile M/M Phono Preamp Preamplifier with Level Control 2 RCA Input & Output for AK-750S
Regular price
$65.64 USD
Regular price
$76.58 USD
Sale price
$65.64 USD
Unit price
per
Taxes included.
SPECIFICATIONS
Brand Name: Prozor
Certification: CE
Choice: yes
Maximum Power Per Channel: NO POWER
Origin: Mainland China
Package: Yes
Specification：
Color: Black
Material: Metal
Mains connection: external power supply,12 V / 1000 mA;
Dimensions (H x D x W): approx. 32 x 111 x 82 mm;
Weight: approx. 0.48 lbs / 0.22 kg;

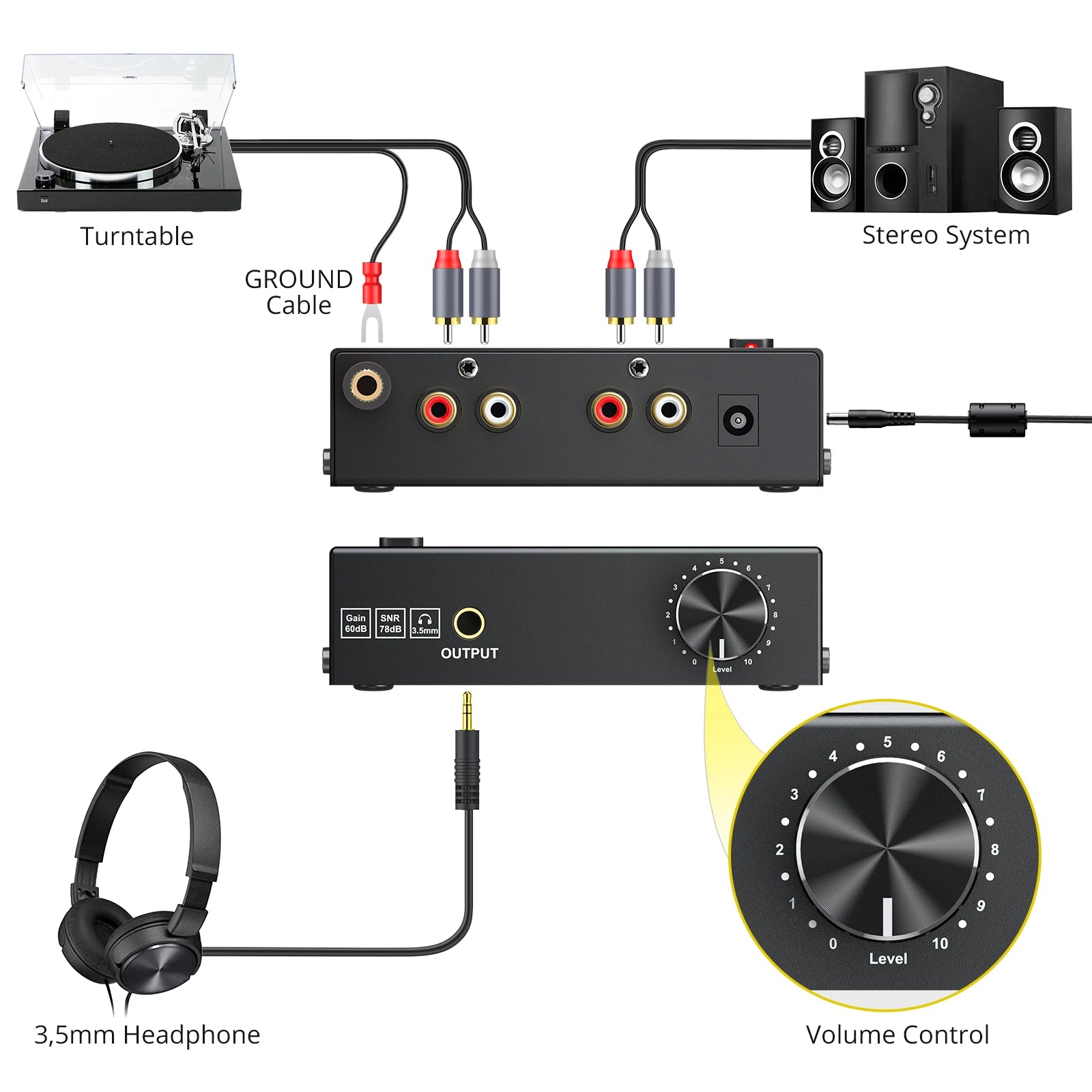

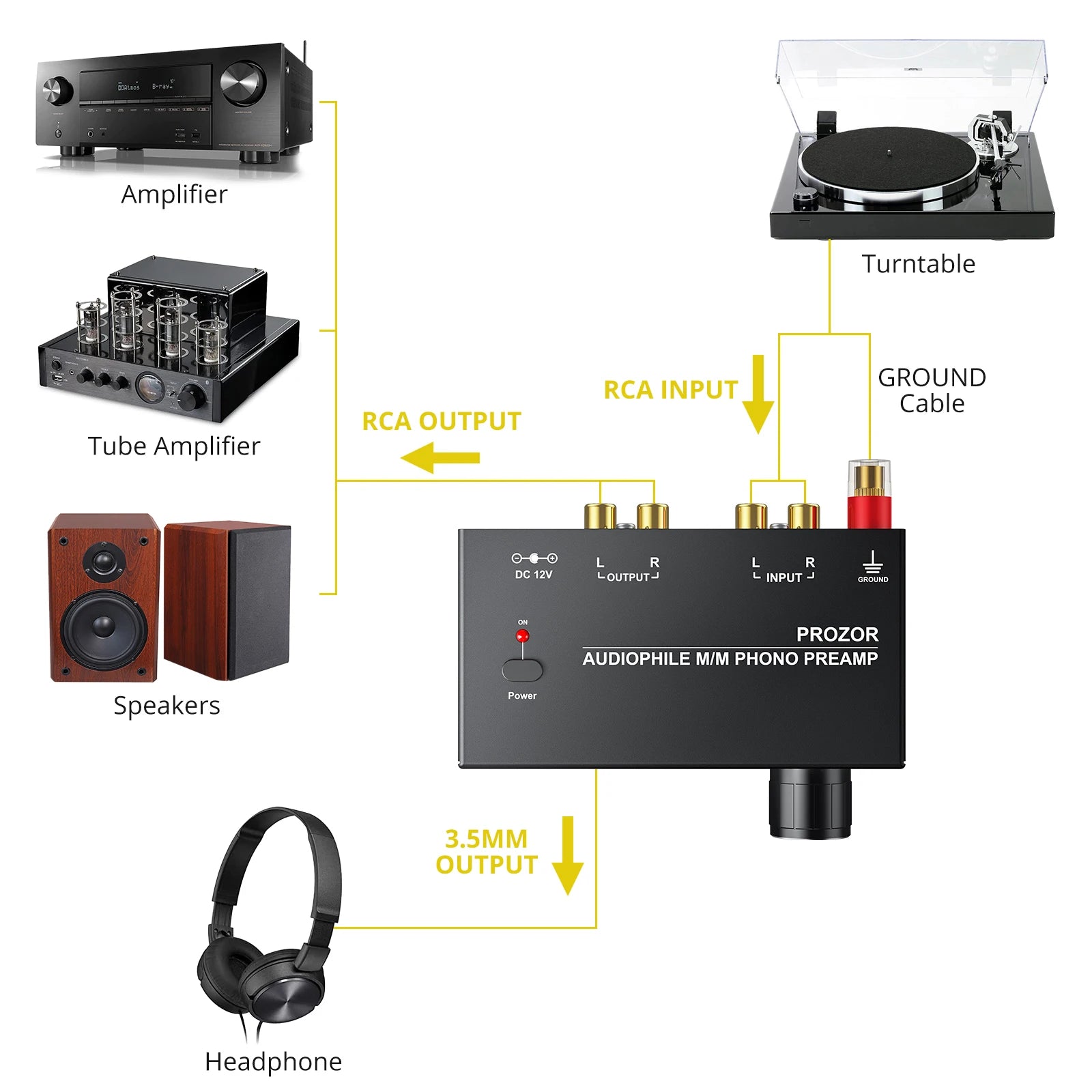

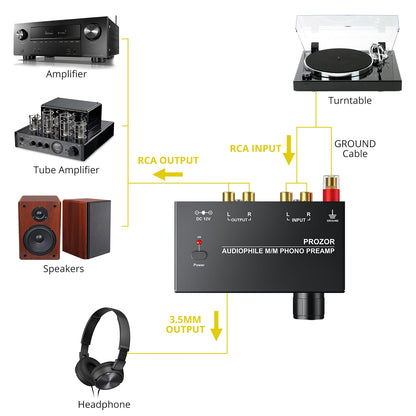

Input:

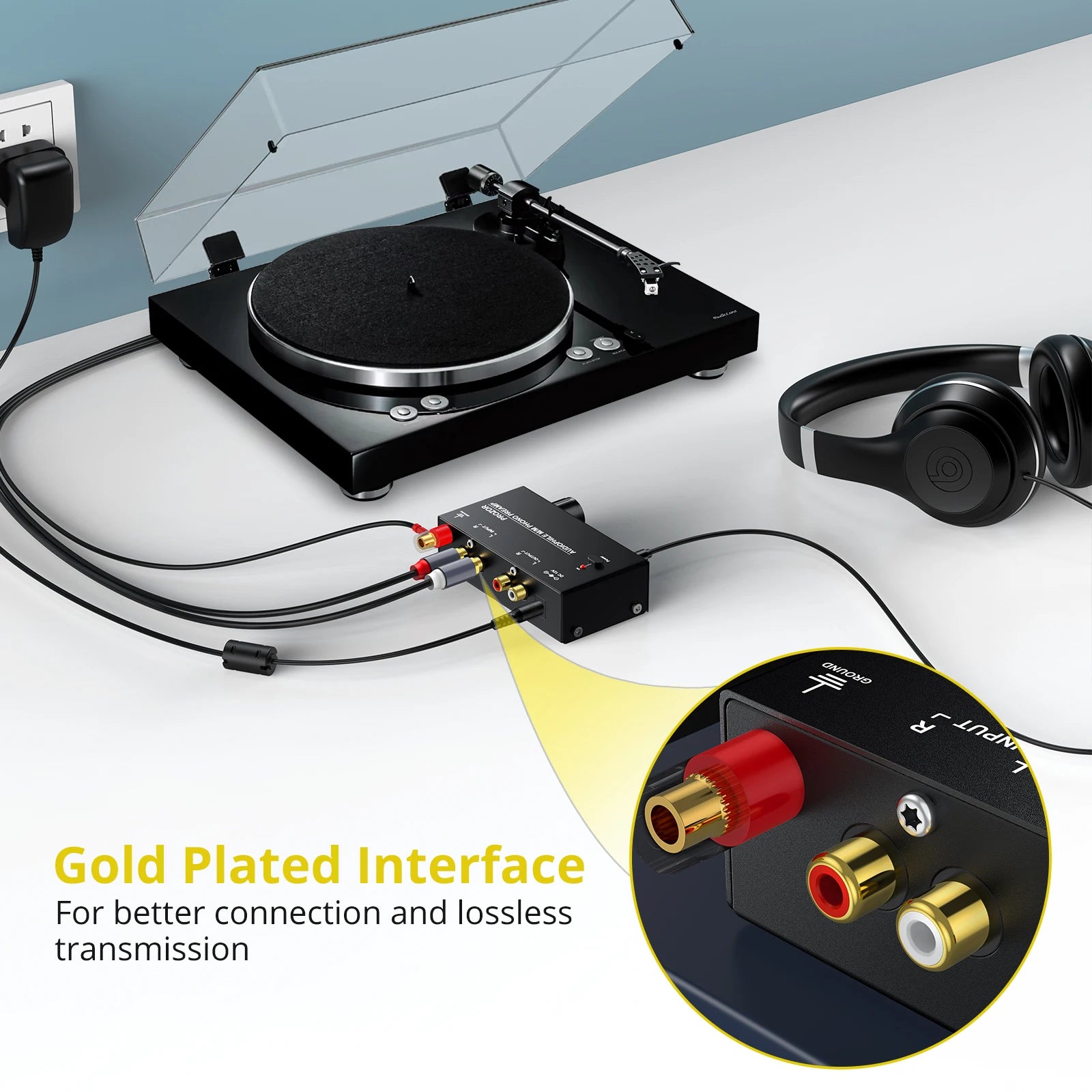

Type: RCA connector
Impedance: approx. 10Kohms
Max. input level: -23.5 dBV @ 1kHz
Output:
Type: RCA and 3.5mm connector
Impedance: approx. 50ohms
Max. output level: +11.5 dBV @ 1 kHz
System Specifications:
Frequency response: RIAA
THD: 0.06% typ. @ -40 dBu/1 kHz
Gain: 60 dB
Signal-to-noise ratio: 78 dBu @ 0 dBu, A-weighted
Input sensitivity: 5.3 mV @ 1 kHz
Note：
1.This device has a large gain, please pay attention to adjusting the volume of the record player to avoid distortion!
2.When the power is turned on, there may be no sound temporarily because the capacitor is charging, please wait for a few seconds.

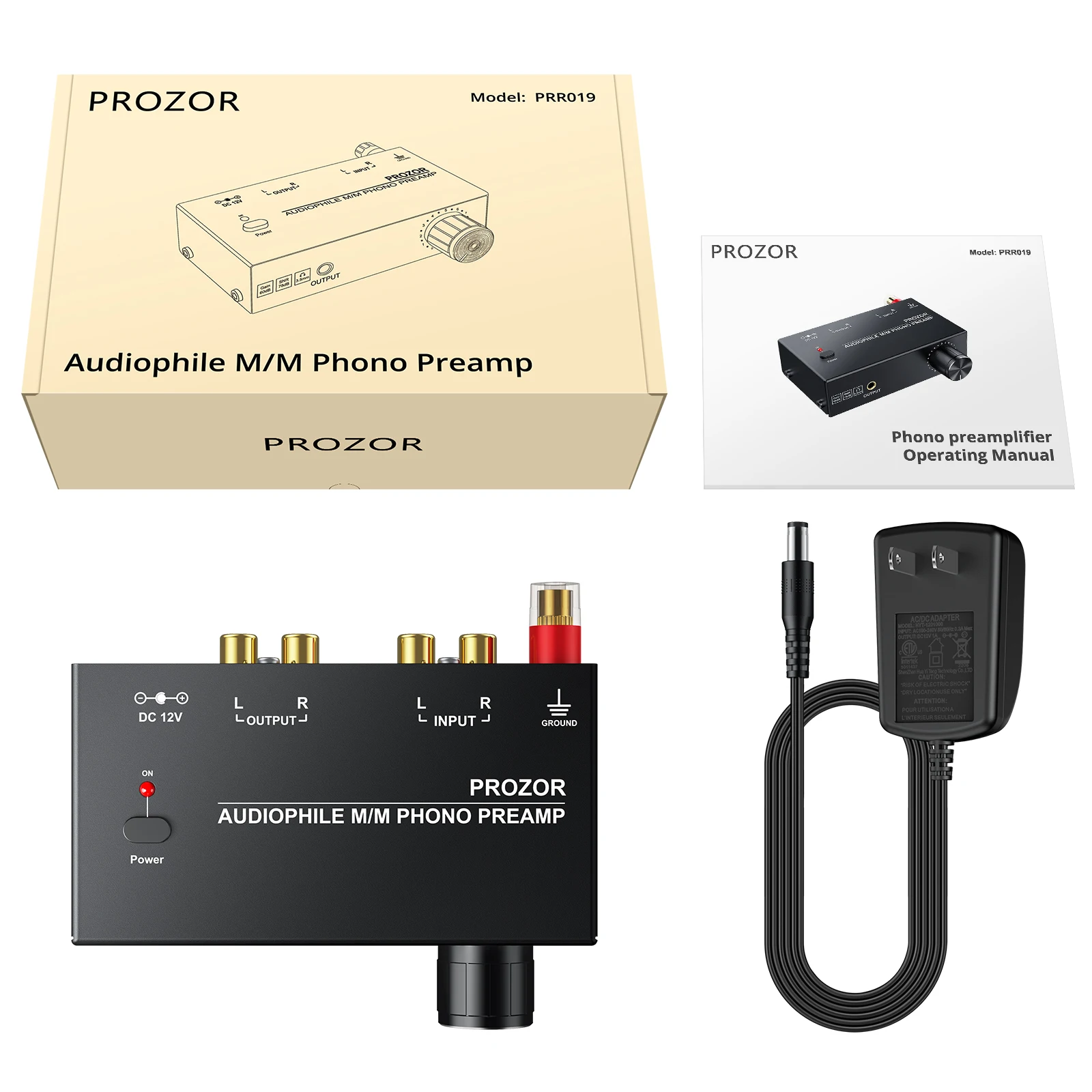

Package Contents：

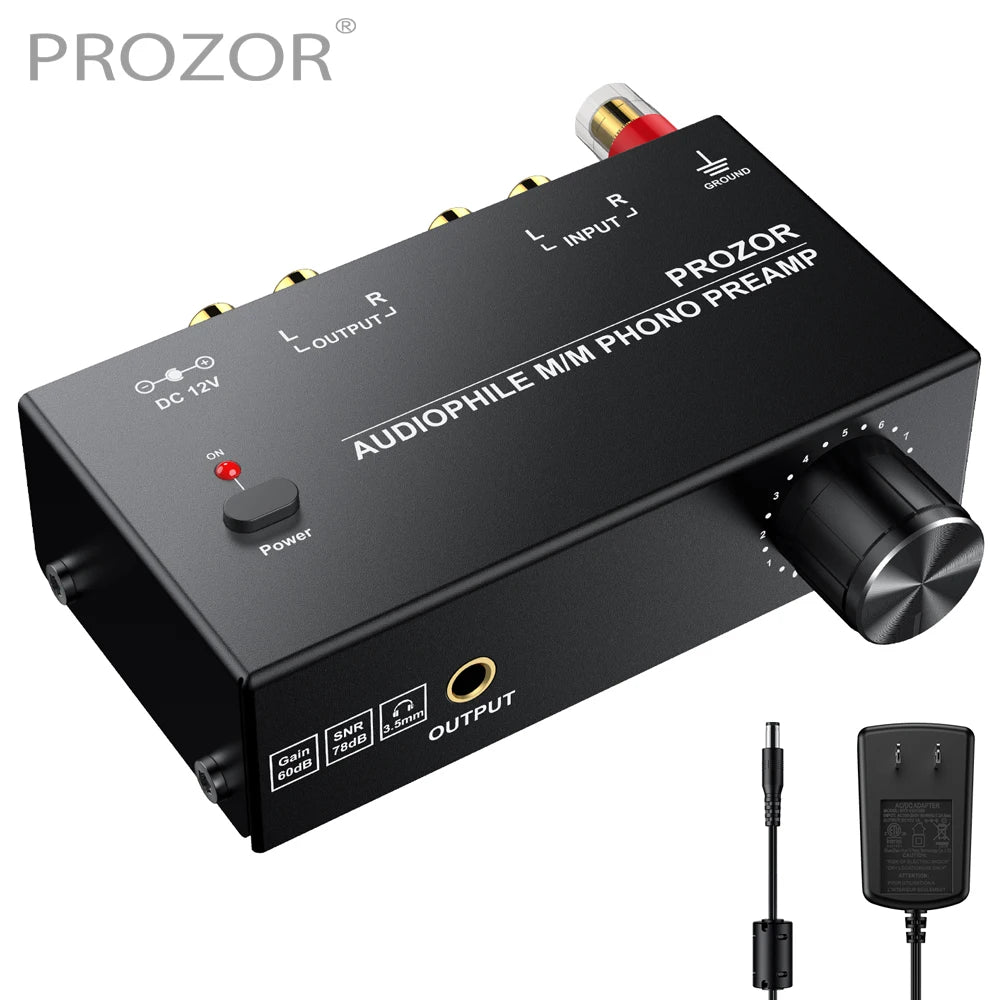

1 xPhono Preamp
1 xPower Adapter
